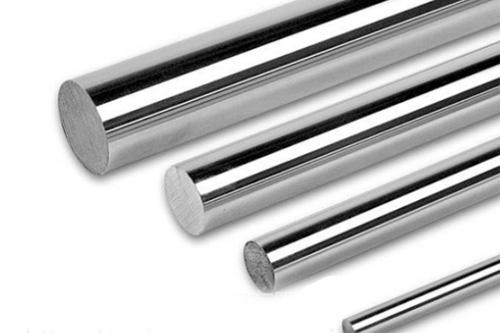

- 301,304,304L,316,316L,309,310S,321 Stainless Steel Bar
GH3030 heat resistant alloy is a high-performance material that maintains its integrity and features high plasticity under 800℃. It also features anti-oxidation properties and can endure stamping and welding processes. After undergoing a solution treatment, its single-phase austenite is stable during use.
| Grade | 301 ,304 ,304L ,316 ,316L ,309 S,310 ,321 |
| Standardl | ASTM A240, JIS G4304, G4305, GB/T 4237, GB/T 8165, BS 1449, DIN17460, DIN 17441 |
| Thickness | 0.2-10.0mm |
| Width | 600mm min |
| Length | 2000mm-8000mm or as customers' request |
| Surface | NO1,No.4,2B, BA, 6K, 8K, Hair Line with PVC |
| Grade | C | Si | n | P≤ | S≤ | Cr | Mo | Ni | Other |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | - | 6.0 | - |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | 0.035 | 0.03 | 17-19 | - | 8.0 | - |
| 304L | ≤0.075 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 8.0 | |
| 309S | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 22-24 | - | 12.0 | - |
| 310 | ≤0.08 | ≤1.5 | ≤2.00 | 0.045 | 0.03 | 24-26 | - | 19.0 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18.5 | 2 | 10.0 | - |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2 | 10.0 | - |
| 321 | ≤0.12 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 9.0 | Ti≥5×C |
| Grade | YS(Mpa) ≥ | TS (Mpa) ≥ | El (%) ≥ | Hardness(HV) ≤ |
| 301 | 200 | 520 | 40 | 180 |
| 304 | 200 | 520 | 50 | 165-175 |
| 304L | 175 | 480 | 50 | 180 |
| 309S | 200 | 520 | 40 | 180 |
| 310 | 200 | 520 | 40 | 180 |
| 316 | 200 | 520 | 50 | 180 |
| 316L | 200 | 480 | 50 | 180 |
| 321 | 200 | 520 | 40 | 180 |
-
Applications

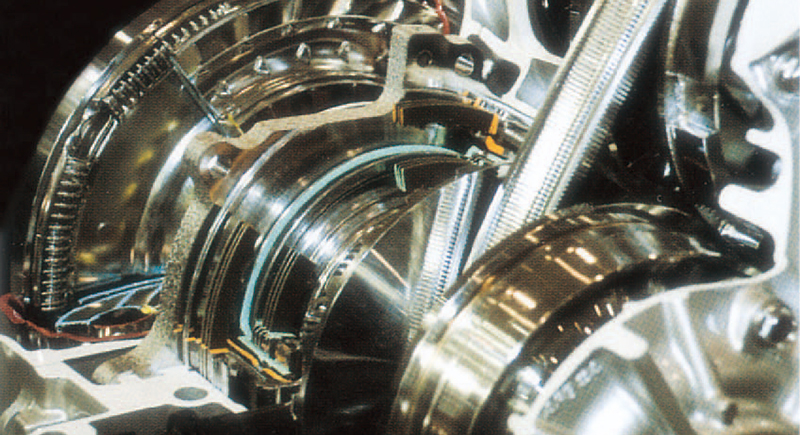

- Turbine engine combustion components that operate with a working temperature under 800℃
- Other high-temperature components that operate under 1100℃ with very small loads.
-
