HASTELLOY B/B-2 (UNS N1001/N10665)
Corrosion-resistant alloy
Features
- Fe and Cr are used minimally, resisting B phrase NI14MO to produce
- Great resistance to stress corrosion cracking and pitting
- Resistance to hydrochloric acid at all concentrations and temperatures

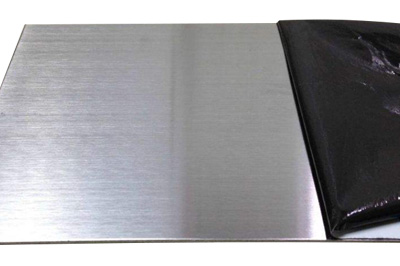

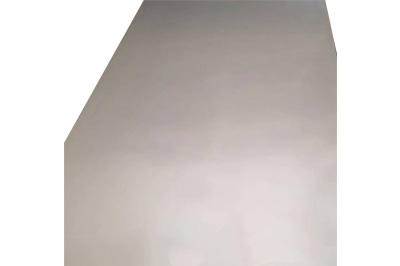

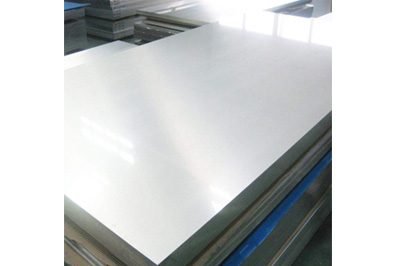

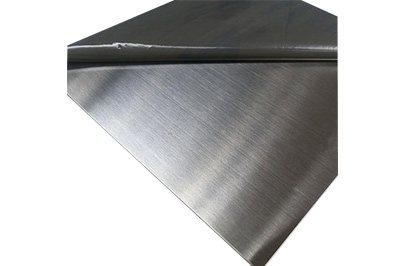

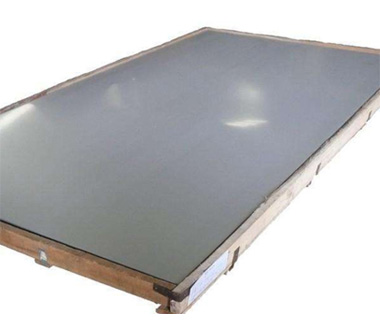

Product Form
Products | ASTM Standard | ASME Standard |
Sheet. Panel. Coil | B333 | SB333 |
Seamless Steel Tube | B622 | SB622 |
Welded Steel Pipe | B619.B626 | SB619.SB626 |
Bar | B335 | SB335 |
Forging Parts | B564 | SB564 |
Chemical Analysis
% | Ni | Mo | Fe | Cr | Co | C | Mn | V | Si | P | S | |
HasteIloy B | MIN | Balance | 26 | 4 | 0.2 | |||||||
MAX | 30 | 6 | 1.0 | 2.5 | 0. 05 | 1.0 | 0.4 | 1.0 | 0. 04 | 0. 03 | ||
HasteIloy B-2 | MIN | Balance | 26 | 2 | ||||||||
MAX | 30 | 7 | 1.0 | 1.0 | 0.02 | 1.0 | 1.0 | 0. 04 | 0. 03 |
Physical Properties
Density | Melting Range | Alloy | Tensile Strength | Yield Strength | Elongation |
9.24g/cm | 1330-1380℃ | Hastelloy | Rm N/mm² | RP0.2N/mm² | A5% |
B-2 | 690 | 310 | 40 |
-
Applications
- Chemical process applications
- Vacuum furnaces

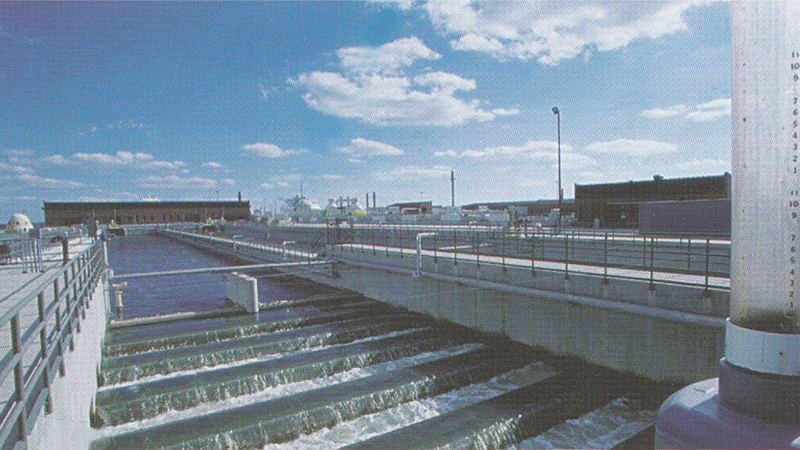

- Mechanical components for the pollution control field
-
