Hastelloy C-2000 (UNS N06200/NICR23M016CU)
Corrosion-resistant alloy
Features
- Hastelloy C-2000 is a material specially designed for resistance to an extensive range of corrosive chemicals including sulfuric, hydrochloric, and hydrofluoric acids over a large temperature range.
- Resistance to stress corrosion cracking
- The combination of Molybdenum (16%) and Copper (1. 6%) provide excellent corrosion resistance to reducing media
- Good oxidizing resistance
Product Form
Bar | Plate | Seamless Pipe | Welded Pipe | Seamless Pipe | Forging Parts |
ASTM B574 | ASTM B575 | ASTM B622 | ASTM B619 | ASTM B626 | ASTM B564 |
Chemical Analysis
% | Ni | Cu | Fe | Mn | C | Si | S | Cr | Al | Mo | P | Co | |
C-2000 | Min. | Balance | 1.3 | - | - | - | - | - | 22 | - | 15 | - | - |
Max. | Balance | 1.9 | 3 | 0.5 | 0. 01 | 0. 06 | 0. 01 | 24 | 0.5 | 17 | 0.025 | 2 |
Physical Properties
Density | 8.9G/CM3 |
Melting Range | 1335-1380℃ |
The Min. Mechanical Properties under Room Temperature
Alloy | Tensile Strength | Yield Strength | Elongation |
RM N/MM2 | RP0.2 N/MM2 | A5% | |
HASTELLOY C-2000 | 690 | 283 | 45 |
-
Applications

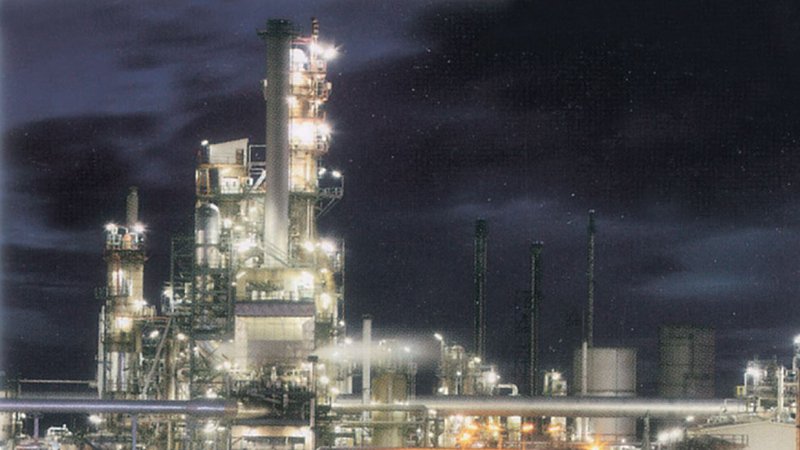

- Chemical Processing
-
