Grade 5 Titanium 6AL-4V
Alpha-beta titanium alloy

Grade 5 Titanium 6AL-4V
Features
  • Grade 5 Titanium 6AL-4V it is one of the most popular alloys in the titanium industry
  • It has excellent strength, low modulus of elasticity, high corrosion resistance, good weldability, and it is heat treatable
Chemical Analysis
% C N H O Fe Ti Al V
Min - - - - - Balance 5.5 3.5
Max 0.08 0.05 0.125 0.2 0.4 Balance 6.75 4.5
Product Form
  • Round bar

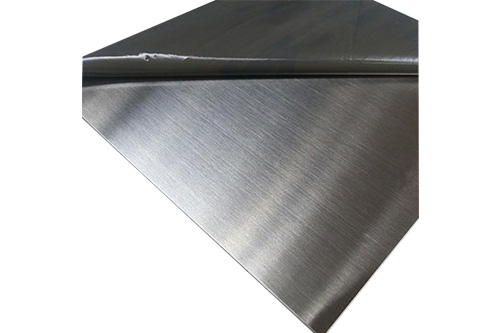

  • Sheet & plate
  • Welding Wire
Physical Properties
Density Mean Coefficient of Thermal Expansion Thermal Conductivity Modulus of Elasticity Melting Point
4.43 g/cm³ 70- 212°F (20- 100°C): 4.78 x 10 (8.6) BTU-in/h-ft-°F (W/m-°K):
At 70°F (21°C): 46.5 (6.7)		 KSI (MPa)
16.5 x 10³ (113.8 x 10³) in tension		 1660°C
  • Applications
    Grade 5 Titanium 6AL-4V
    • Compressor discs and blades
    • Aircraft structural components
    • Fitness Equipment
    • Pumps and valves
  • Inquiry
