Incoloy 800/800H/800HT (UNS N08800/ N08810/ N08811)
High-temperature alloy
800 alloys own the following advantages
- Outstanding corrosion resistance, heat resistance, high strength
- It has good mechanical properties
- At elevated temperatures it offers resistance to oxidation
- Easy fabrication
800H alloys own the following advantages
- High creep rupture strength
- High temperature strength
- Easy fabrication
- Good resistance to sulfur-containing atmospheres

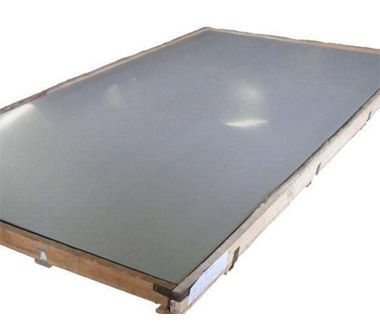

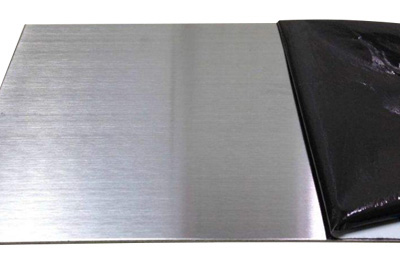

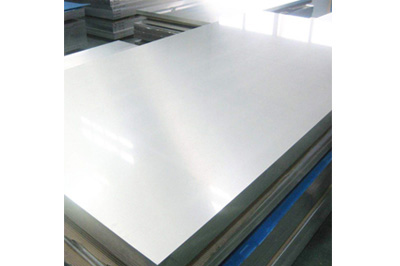

Product Form
Products | ASTM Standard | ASME Standard | AME Standard |
Sheet. Plate. Strip | B409 | SB409 | 5871 |
Seamless Pipe | B163. B407 | SBI 63.SB407 | |
Welded Pipe | B514 | ||
Bar | SB408 | SB408 | |
Forging Part | B564 | SB564 |
Chemical Analysis
% | C | Mn | Si | Gr | S | Ni | Cu | Fe | Ai | Ti | |
800 | Min. | - | - | - | 19 | - | 30 | - | Balance | 0. 15 | 0. 15 |
Max. | 0.10 | 1.5 | 1 | 23 | 0. 015 | 35 | 0.75 | Balance | 0.60 | 0.60 | |
800H | Min. | 0. 05 | - | - | 19 | - | 30 | - | Balance | 0. 15 | 0. 15 |
Max. | 0.10 | 1.5 | 1 | 23 | 0. 015 | 35 | 0.75 | Balance | 0.60 | 0. 6 | |
800HT | Min. | 0. 06 | - | - | 19 | - | 30 | - | Balance | 0. 15 | 0. 15 |
Max. | 0.10 | 1.5 | 1 | 23 | 0. 015 | 35 | 0.75 | Balance | 0.60 | 0.60 |
Physical Properties
Density | 8.0G/CM3 |
Melting Range | 1350-1400°C |
The Min. Mechanical Properties under Room Temperature
Alloy | Tensile Strength | Yield Strength | Elongation |
RM N/MM2 | RPO.2 N/MM2 | A5% | |
800 | 500 | 210 | < 35 |
800H | 450 | 180 | < 35 |
-

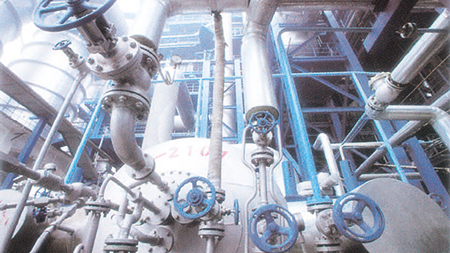

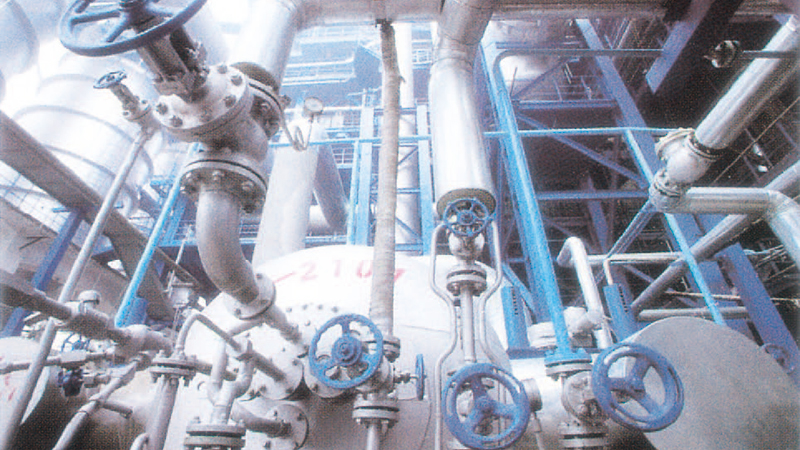

Applications800
- Heat exchangers and process piping
- Furnace components
- Ammonia effluent coolers
- Chemical and petrochemical processing
- Pressure vessels
- Heat exchangers
- Industrial furnaces
-
