Monel 400 (UNS N04400)
Corrosion-resistant alloy
Features
- Monel 400 alloy is resistant to sea water and steam at high temperatures
- Resistant to salt and caustic solutions
- Resistance to stress-corrosion cracking in most freshwater environments
Product Form
Product | ASTM Standard | ASME Standard | AME Standard |
Sheet. Plate. Strip | B127 | SB127 | 4544 |
Seamless Pipe | B163.B165 | SB163.B165 | 4574 |
Welded Pipe | B725 | SB725 | |

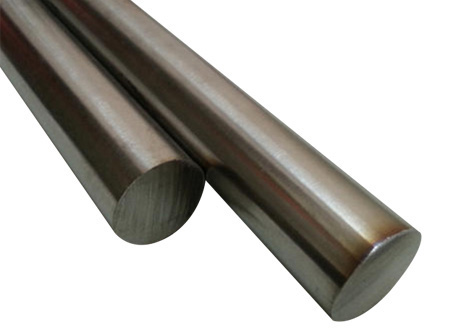

Bar | B164.B865 | SB164 | 4675.4676 |
Forging Part | B564 | SB564 | 4675 |
Wire | 4730.4731 |
Chemical Analysis
% | NI | Cu | Fe | C | Mn | Si | S | |
M0NEL400 | Min. | 63 | 28 | - | - | - | - | - |
Max. | - | 34 | 2.5 | 0.3 | 2 | 0.5 | 0.024 |
Physical Properties
Density | Melting Range | Tensile Strength | Yield Strength | Elongation |
8. 83G/CM3 | 1300-1390℃ | RM N/MM² | RPO.2 N/MM² | A5% |
480 | 170 | 35 |
-
Applications
- Marine engineering
- Hydrocarbon processing
- Pumps
- Valves and fittings
- Heat exchangers
-
Inquiry
Since 1998, Shanghai Bozhong Metal Group (stock code 210988) has been China’s leading supplier of metal products.
With six subsidiaries located in Shanghai, Zhejiang, Jiangsu, and Hong Kong, we have all of the capabilities necessary to provide customers with pre-sale and after sales products and services.
Beyond our production operations, we offer technical consultation, technology development, and services involved in the field of special steel plates, super stainless steel, titanium and nickel alloys, chromoly alloys, aluminum alloys and more. All materials can be provided in different shapes like plates, bars, pipes, tubes, wire, beams, flanges, fittings, etc.
