Incoloy 926 (UNS N08926)
Corrosion-resistant alloy
Features
- Outstanding resistance to chloride-induced stress corrosion
- Very good corrosion resistance when in contact with oxidizing and reducing media
- The combination of molybdenum (approximately 6.5%) and nitrogen (approximately 0.2%) in its composition resists pitting and crevice corrosion
Chemical Analysis
% | Ni | Cr | C | Mn | Fe | Si | Cu | Mo | N | Ti | P | S | |
Incoloy 926 | Min. | 24 | 19 | - | - | Balance | - | 0.5 | 6 | 0.15 | 0.6 | - | - |
Max. | 26 | 21 | 0. 02 | 2 | Balance | 0.5 | 1.5 | 7 | 0.25 | 1.2 | 0.03 | 0. 01 |
Physical Properties
Density | 8.1G/CM3 |
Melting Range | 1320-1390°C |
The Min. Mechanical Properties under Room Temperature
Alloy | Tensile Strength | Yield Strength | Elongation |
RM N/MM2 | RPO.2 N/MM2 | A5% | |
926 | 650 | 295 | ≤35 |
-

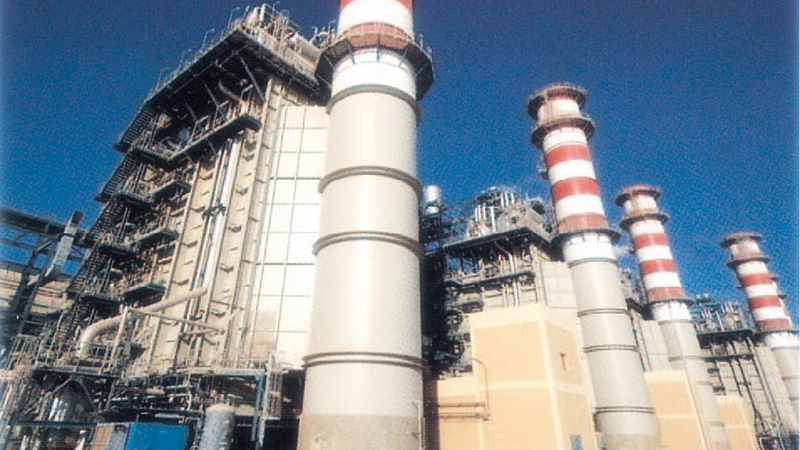

Applications
- Seawater environments
- Heat exchangers, tank housings
- Distributor systems for sulfuric acid
- Condenser pipes
- Pump lines in oil and gas extraction
-
Inquiry
Since 1998, Shanghai Bozhong Metal Group (stock code 210988) has been China’s leading supplier of metal products.
With six subsidiaries located in Shanghai, Zhejiang, Jiangsu, and Hong Kong, we have all of the capabilities necessary to provide customers with pre-sale and after sales products and services.
Beyond our production operations, we offer technical consultation, technology development, and services involved in the field of special steel plates, super stainless steel, titanium and nickel alloys, chromoly alloys, aluminum alloys and more. All materials can be provided in different shapes like plates, bars, pipes, tubes, wire, beams, flanges, fittings, etc.
